The Assioma power meters pedals offer the possibility to have a comprehensive and detailed understanding of your pedalling style also thanks to its strategic position. In fact you will not only be able to see your total power but also many other useful data. Let’s see it in more details:


Left/right balance

It shows as a percentage the power separately put out by the left and right leg. The L/R Power Balance allows you to monitor the dominant/non-dominant leg ratio and observe how this varies in relation to different racing and fitness conditions. This can be particularly useful to work on your imbalances, also in post-traumatic rehabilitation programs.

Unlike others, the Assioma power meter pedals convey this metric as a real dual-sided value, and not estimates (see Table).


Power sensor single single double
Sensor position one side only Centered (spider, bottom bracket, hub) on both left and right side
Total power data estimated real real
L/R Balance data X estimated real

Table 1. Comparison of Different Types of Cycling Power Meters.




It represents the number of the pedal revolutions per minute (rpm).
The built-in cadence sensor of Assioma constantly transmits this value to the bike computer: the use of a separate cadence sensor is, therefore, unnecessary.



IAV Cycling Dynamics

These are additional metrics transmitted via the ANT+ channel.
At the moment, only Garmin has implemented the possibility to view them and for some devices only (see FAQ U20
The Cycling Dynamics are:

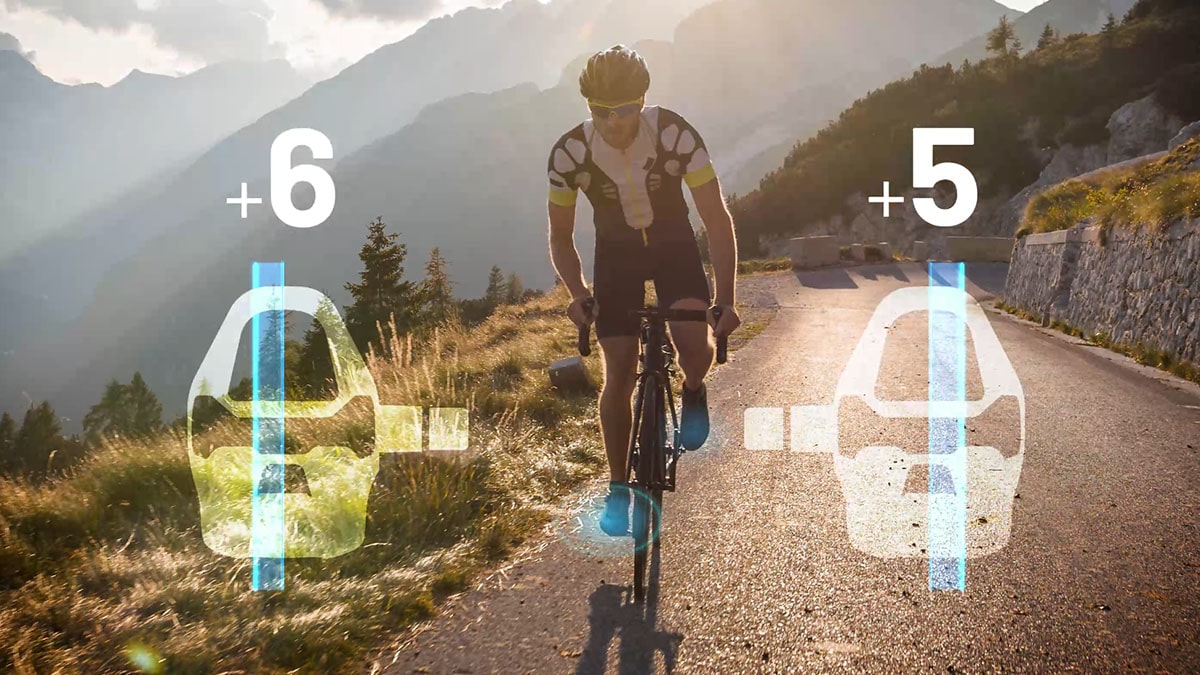

  • PCO, also called Platform Center Offset
    So far the PCO is only available for ASSIOMA PRO MX, which is our SPD® power meter pedal version.
    The PCO is calculated by identifying how force is distributed across the pedal platform during the pedal stroke throughout a specific period of time. This data is useful to understand where force is applied relative to the center of the pedal platform, which is particularly useful, for e.g., to fine-tune the positioning of the cleats, improve your cycling style and prevent injuries.


  • Power Phase (PP)
    It represents the segment of the pedal stroke where positive torque is produced. In this phase, over 90% of the propulsive force that moves the bicycle forward is generated.


The Graphic above shows the power produced during a single pedal stroke. The Power Phase represented by the red segment of the circumference outlines where power begins and ends.


The green sub-segment, instead, is the Power Phase Peak (PP) and shows where the majority of power is produced during a single pedal stroke. Most head units consider the Power Peak Phase as a value higher than 50% of the power output but this can be changed depending on your preferences.


  • Rider Position
    It  shows how much time a cyclist stands on the pedals or remains seated.
    This  metric, together with the registered track, permits to analyze the trend of the cyclist to change position on the bike during particular moments of the ride, in other words to understand how a specific position can affect the performance.

Assioma UNO provides these values for the left leg only whereas Assioma DUO for both the left and right leg.


Torque Effectiveness (TE)

It represents as a percentage how much of the power generated during the pedal stroke actually contributed to the propulsion of the cyclist.
This value is calculated each revolution as follows: (P+ + P−) / P+.
(P+) stays for Positive Power, that is the power needed to push the pedal forward, whereas (P-) is the Negative Power, that is the power that pushes in the opposite direction. Negative Power can be countered by trying to pull the foot up on the backstroke.
A 100% Torque Effectiveness occurs when no Negative Power has been accumulated during a pedal stroke. The typical Torque Effectiveness value may vary between 60% and 100%.

Assioma UNO provides this value for the left leg only whereas Assioma DUO for both the left and right leg.


Pedal Smoothness (PS)

It indicates as a percentage how evenly distributed power is throughout the whole revolution of a pedal stroke. A value of 100% means that power is delivered constantly throughout the whole revolution: the higher the value the "rounder" the pedaling.
Pedal Smoothness is identified by correlating the Average Power (Pavg) with the Maximum Power (Pmax) measured in a single 360° rotation of the pedal.

Assioma UNO provides this value for the left leg only whereas Assioma DUO for both the left and right leg.


Other parameters

There are other parameters we can observe if calculated by your bike computer based on the data transmitted by Assioma:



  • NP® (Normalized Power®)

  • IF® Intensity Factor®, zone di potenza (Z1 a Z7)

  • TSS® Training Stress Score®

  • ACL®

  • TCL®

  • Energia consumata

  • Potenza FTP

  • Rapporto potenza/peso

  • W'Bal®

  • Wbal®
